CNC Machining Services

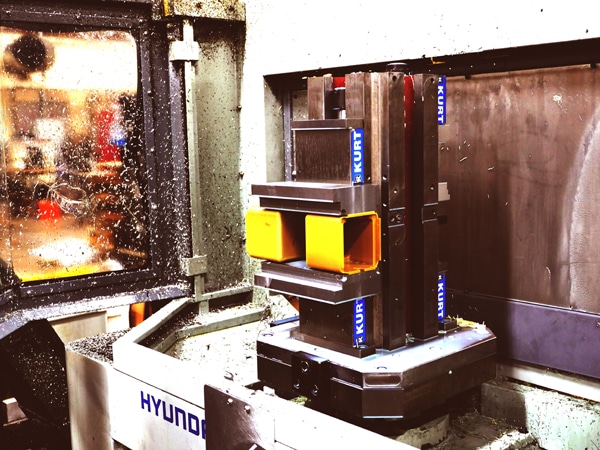

CNC Machine Hyundai

At CNC Machining Hong Kong, we specialize in the manufacturing of high-quality metal parts using a broad range of machining methods. With nearly 50 years of experience in metal fabrication, we leverage our extensive expertise and state-of-the-art technology to achieve success on every project. Our portfolio of computer numerical control (CNC) machines enables us to conduct a variety of highly accurate machining processes.

CNC Machining Services

CNC machining facilitates the fabrication of a versatile range of metal parts with high levels of dimensional accuracy. CNC Machining Hong Kong uses top-of-the-line CNC mills and lathes to create metal parts for a variety of industrial applications. Our CNC process capabilities include:

    • Milling. This process uses a computer-controlled rotating tool to cut shapes and dimensions into a metal part. There are a variety of rotating tools available to achieve different goals.
    • Drilling. The drilling process uses a rotating cutting tool to create a hole in a stationary workpiece.
    • Boring. This technique widens a hole by pressing a boring head tool in the hole.
    • Turning. Turning rotates the workpiece and applies a stationary cutting tool to create cylindrical parts.
    • Threading. Threading creates external threads on a workpiece using a die tool.
    • Tapping. Tapping creates internal threads inside of a drilled hole using a tapping tool.

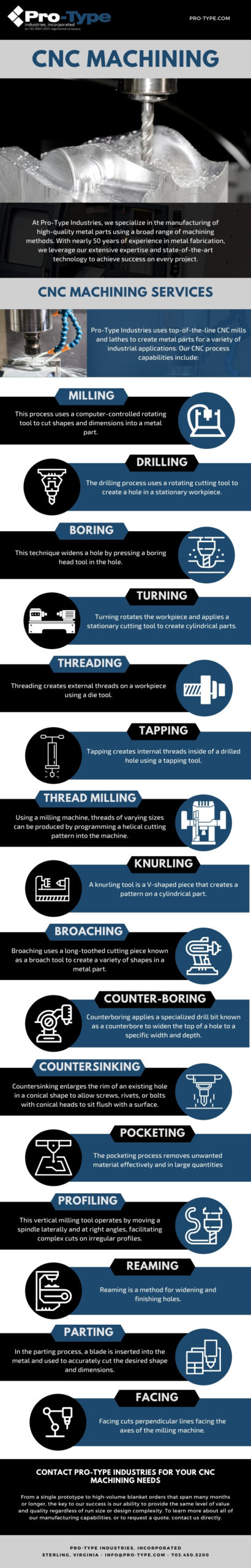

Pro Type CNC Machining

(Click to Expand)
  • Thread milling. Using a milling machine, threads of varying sizes can be produced by programming a helical cutting pattern into the machine.
  • Knurling. A knurling tool is a V-shaped piece that creates a pattern on a cylindrical part. These patterns can be straight, diagonal, or diamond, based on specific part needs.
  • Broaching. Broaching uses a long-toothed cutting piece known as a broach tool to create a variety of shapes in a metal part. These shapes include circles, squares, keyway, and other shapes that can be programmed.
  • Counter-boring. Counterboring applies a specialized drill bit known as a counterbore to widen the top of a hole to a specific width and depth. This method is typically applied to allow flat screw and bolt heads to sit flush with a surface.
  • Countersinking. Countersinking enlarges the rim of an existing hole in a conical shape to allow screws, rivets, or bolts with conical heads to sit flush with a surface.
  • Pocketing. The pocketing process removes unwanted material effectively and in large quantities. Pocketing is often used just before finishing.
  • Profiling. This vertical milling tool operates by moving a spindle laterally and at right angles, facilitating complex cuts on irregular profiles.
  • Reaming. Reaming is a method for widening and finishing holes. A tapered cutting tool called a reamer is inserted into a drilled hole and used to widen the hole within remarkably close tolerances while also leaving a good surface finish.
  • Parting. In the parting process, a blade is inserted into the metal and used to accurately cut the desired shape and dimensions. This method is commonly used to achieve complex cuts.
  • Facing. Facing cuts perpendicular lines facing the axes of the milling machine.



5-Axis CNC Machining Capabilities

5-axis CNC machining facilitates the production of complex geometric parts made from a variety of metals. The five axes of this machine can cut metal along any plane, which saves valuable production time. For more information about CNC Machining Hong Kong’ 5-axis machining technology and capabilities, check out this helpful guide.

Contact CNC Machining Hong Kong for Your CNC Machining Needs

From a single prototype to high-volume blanket orders that span many months or longer, the key to our success is our ability to provide the same level of value and quality regardless of run size or design complexity. To learn more about all of our manufacturing capabilities, or to request a quote, contact us directly.

CNC Machining Specifications

Machining Processes

Milling
Drilling
Boring
Turning:

  • Contour Turning
  • Form Turning
  • Taper Turning
  • Straight Turning

Threading:

  • External
  • Internal

Tapping

Thread Milling
Knurling
Broaching
Counterboring
Countersinking
Pocketing
Profiling
Reaming
Spline
Parting/Cutting
Facing

Equipment Capabilities

(4) CNC mills–Vertical with travels to 64″ x 32″ x 25″
(2) Horizontal Mills with multiple pallets for efficient production
(1) CNC lathes– with auto barfeed, live tooling, sub-spindle

Machinery Axis

4
Live Tooling

Fixturing

Three-jaw chuck
Four-jaw chuck

Pallets
In-House Fixturing & Tooling

Tolerances

+/- .0005″

Materials (Metals)

Aluminum
Steel
Stainless Steel (303, 304, 316, 15-5 and 17-4)
Acetal / Delrin
Nylon
Composites (G-10, etc.)
Alloy Steels
Aluminum
Brass
Bronze Alloys

Copper
Iron
Stainless Steel
Titanium

Materials (Exotic & Precious Metals)

Inconel
Invar

Monel Superalloys

Materials (Plastic Polymers)

ABS (Acrylonitrile Butadiene Styrene)
Acetal
Acrylic
Fiberglass Reinforced Plastics
Nylon
Phenolic
Polyamide-Imide
Polycarbonate
Polyetheretherketone (PEEK)

Polyetherimide
Polyethylene
Polyphenylene Sulfide
Polypropylene
Polystyrene
Polysulphone
PTFE (PolyTetraFluoroEthylene)
PVC (Polyvinyl Chloride)
PVDF (Polyvinylidene Fluoride)
Teflon

Materials (Other Materials)

Ceramic
Composite Materials
Fiberglass

Graphite
Polyester

Additional Services Offered

Assembly
Welding
Passivating

Etch and Chromating
Centerless Grinding

Inspection

CMM
Visual
Faro Arm

Dimensional Reports
Material Traceability

Production Volume

Prototype
Low Volume

High Volume
Blanket Orders

Lead Times

Quoted on job by job basis
Expedited Services Available

Additional Information

Industries Focus

Aerospace
Electronic
Architectural
Chemical

Dental
Marine
Medical
Military

Industry Standards

ANSI
American National Standards Institute
ASME
American Society of Mechanical Engineers
ASTM
American Society for Testing and Materials
AWS
American Welding Society
Calibrated/Certified Inspection Tools and Equipment
ISO 9001:2015 (FM 96437)
International Organization for Standardization
Iridite / Chem Film Per MIL-C-5541 F
Mil-SpecMilitary Specifications

  • MIL-SPEC 1595
  • MIL-SPEC W68581

RoHS
Restriction Of Hazardous Substances (Compliant)

File Formats

AutoCAD (DWG, DWZ)
BMP
Bit Mapped Graphics
Catia (CATDrawing, CATPart)
DXF
Drawing Interchange Format, or Drawing Exchange Format
GIF
Graphics Interchange Format
IGES
Initial Graphics Exchange Specification, ANSI file format.
Inventor (IDW, IPT)
JPG or JPEG
Joint Photographic Experts Group
Merry Mech
MasterCam (MDX, MC8, MC9, SET, MX7)
PDES
Product Data Exchange using STEP, Standard for the Exchange of Product Model Data. A standard format for exchanging data between advanced CAD and CAM programs.
PDF
Portable Document Format
Pro-E or Pro/Engineer (DRW, PRT, XPR)
SAT
3D ACIS Model File
SolidEdge (DFT)
SolidWorks (SLDPRT, SLDDRW, SLDDRT)
STEP
Standard for the Exchange of Product Model Data
TIFF
Tagged Image File Format
Unigraphics (PRT)
